GENERAL INFO

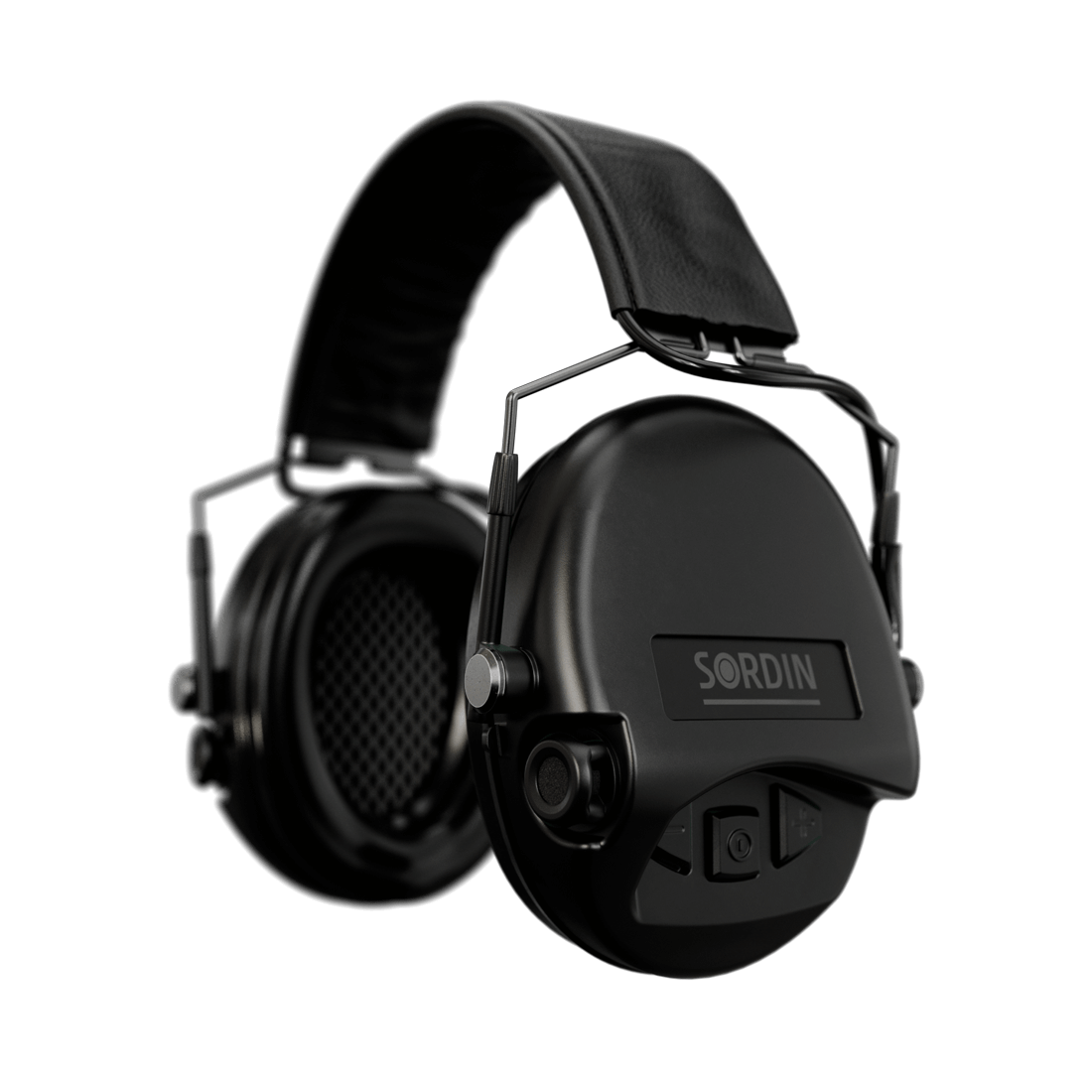

‍The Supreme MIL AUX headset provides high noise reduction yet with a slim design.

KEY FEATURES

• Slim cups to fit both left hand and right hand shooters
• Available as a foldable headband, helmet mounted, slim headband and neckband versions
• Easy to use push buttons operates the electronic functions
• Level Dependent function that allow you to hear ambient sound like warning signals, moving vehicles and important information and still be protected from hazardous noise
• High amplification and natural sound reproduction without chopping and cutting out
• Water proof microphones (IP67 tested)
• The electronic circuits are encapsulated in multiple layers of lacquer and polymer for increased robustness
• Amplification of low sounds
• Very natural sound reproduction through the speakers inside the cups
• Two loud speakers in each cup, one for surround hearing and one for radio/communication - radio/ communication works even when batteries are out
• Sound reproduced through the level dependent function is limited to a maximum of 82 dB
• Battery save function, low battery warning (40), auto shutdown (4h), battery life time 600h
• Automatic switch-off after 4 hours if no button is activated saves battery life
• Audio input (AUX) for connecting external audio sources, such as communication radios
• Low battery warning when approximately 40 hours is left of the battery life
• Applicable tests made in accordance to MIL standards MIL-STD-810g and EMC-MIL-STD-461G.
• Additional RFI protection.

‍HELMET MOUNTING
Also available with ARC rail application

MIL STANDARDS
Sordin is in the process of extending test procedures according to MIL-STD-810H (Environmental Engineering Considerations and Laboratory Tests), and MIL-STD-461G (Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment).

TECHNICAL INFORMATION
Batteries: 2 x 1.5 V AAA/LR03, estimated operating time is around 600 hours
Level Dependent microphone frequency response: 100 Hz – 10 KHz
Loudspeakers / loudspeaker response: 2 x 32 Ohm / 20 Hz – 20 KHz
Operating conditions: - 20°C - + 50°C
Max audio signal allowed from the connected radio to not exceed 82 dB(A) through the speakers: 399 mVrms
Weight headband version (excluding batteries): 330 gram
Weight headband version (including batteries): 375 gram
Complies with following environmental directives: RoHS, WEEE
